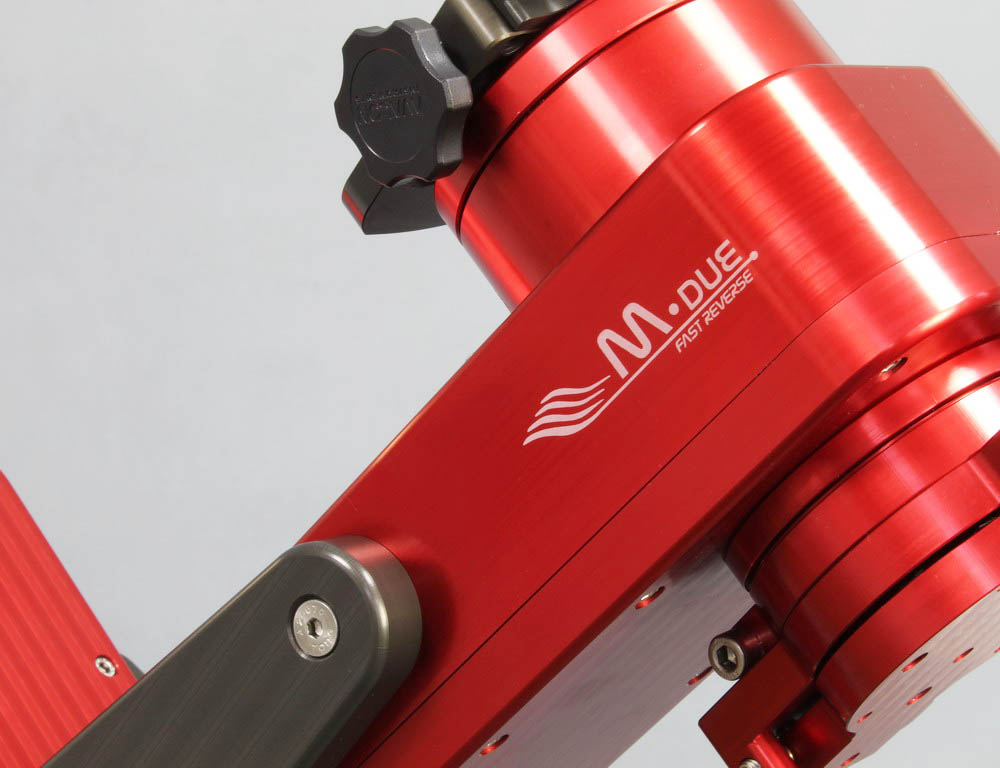

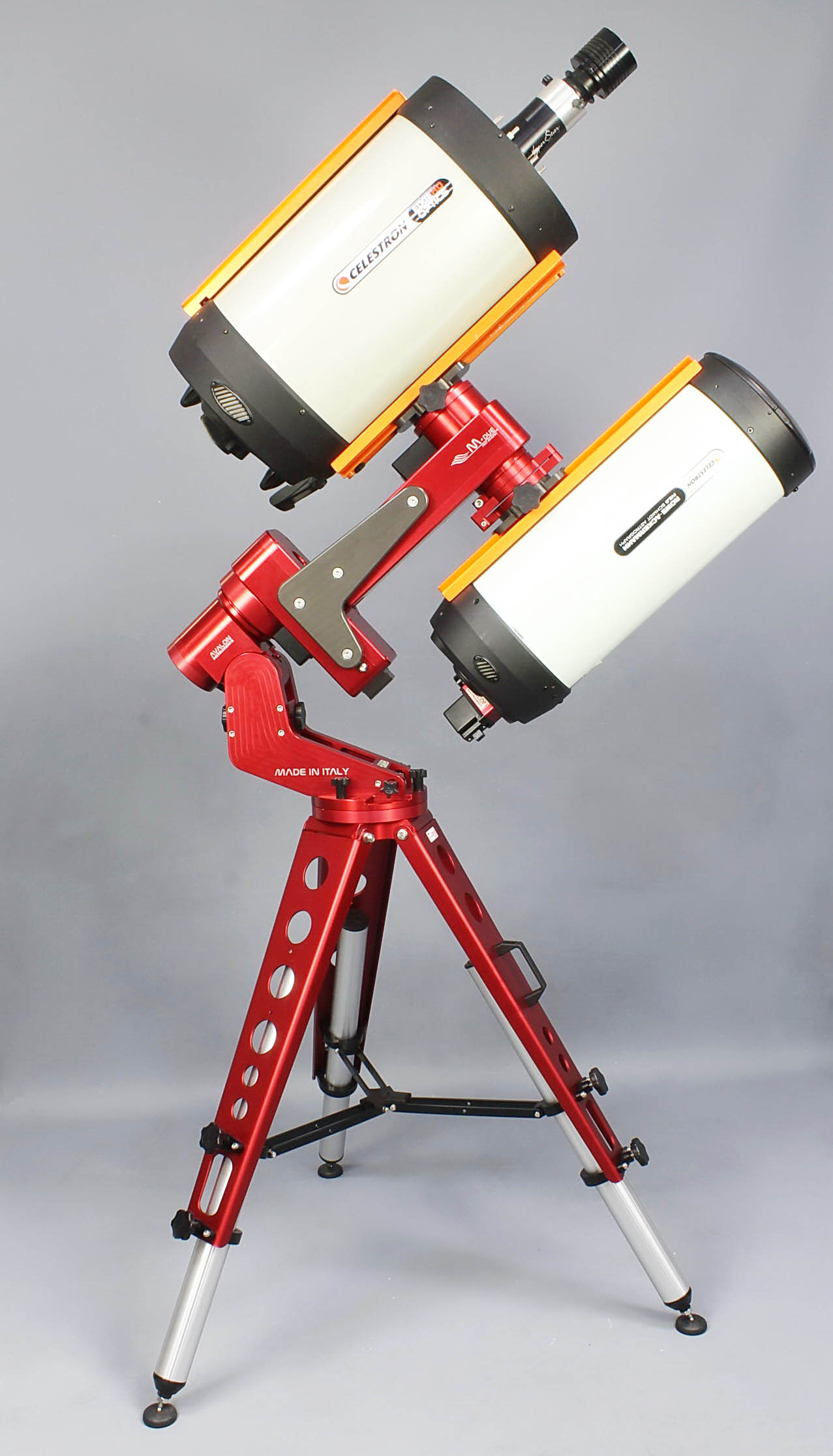

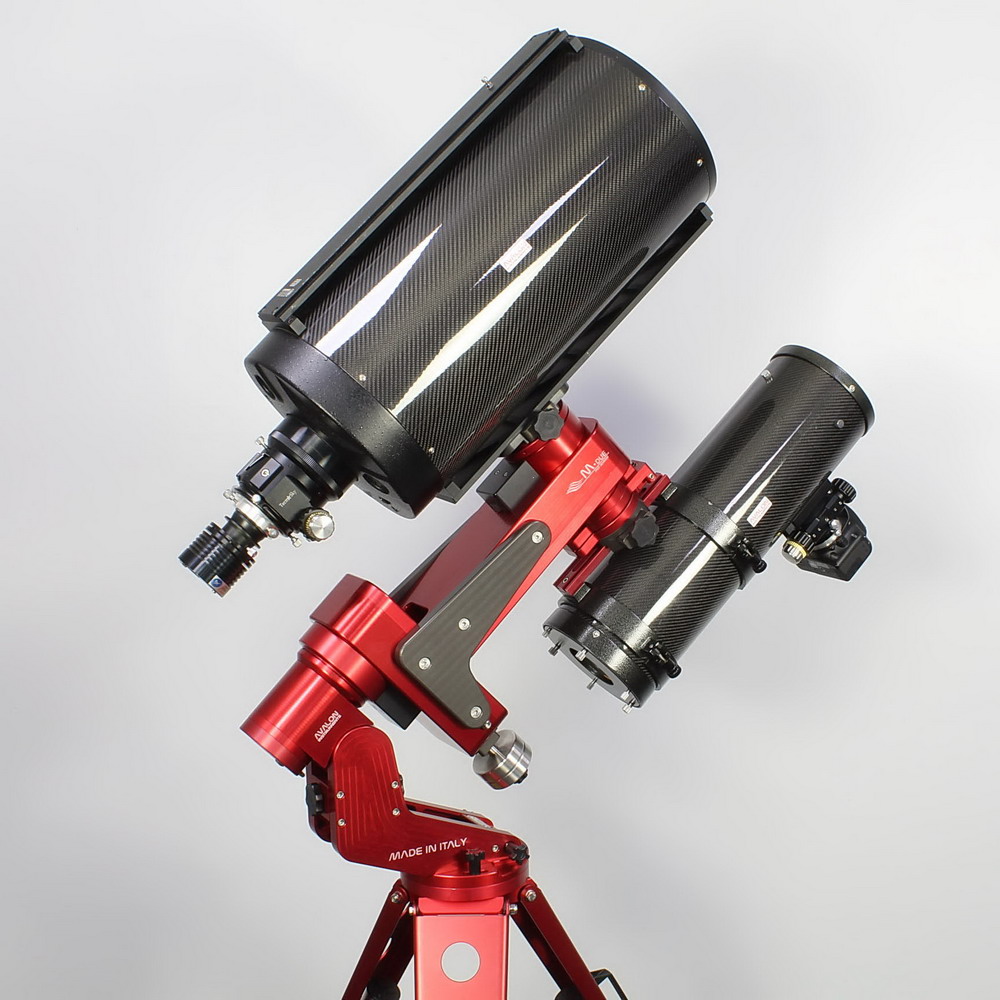

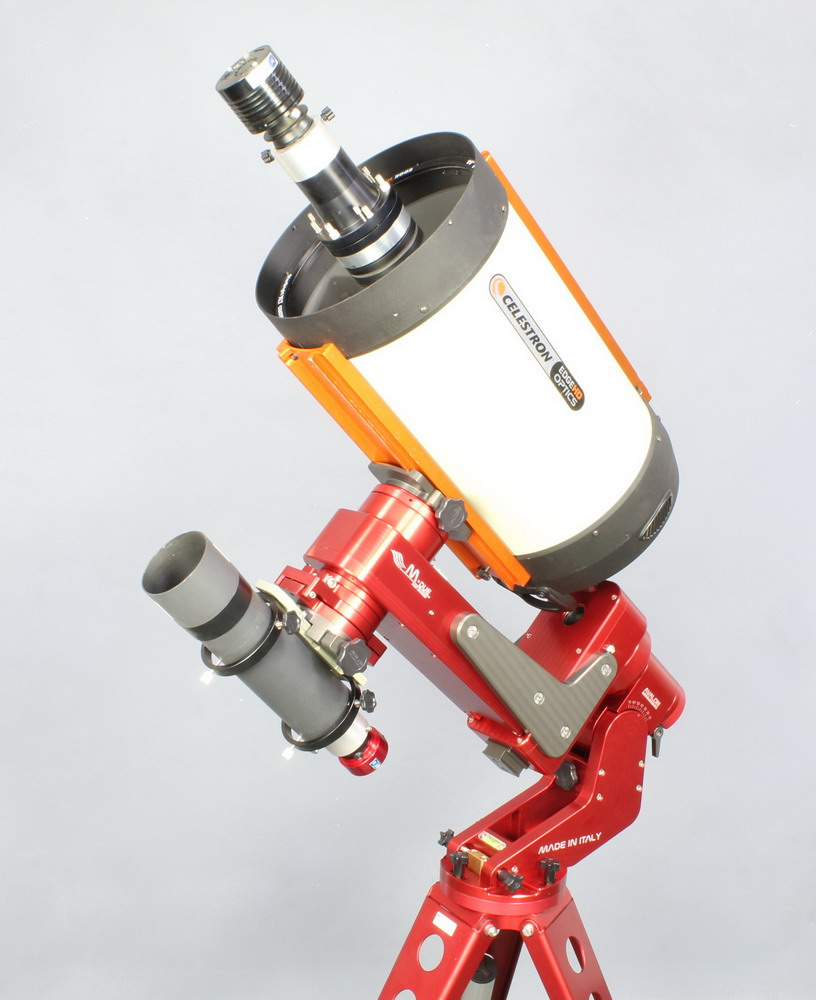

The M-due Fast Reverse is a single arm fork mount devoted to deepsky imaging in the capacity range up to 25 kg in single telescope configuration and up to 32 kg in double telescope configuration.

The M-due design put together the M-uno and the M-zero mounts concepts.

A robust mount base, an high payload capability and more then 6 positions available for the DEC arm on the RA axis. In this way it is possible to achieve the best balancing by using as less as counterweight possible.

Slew Speed:  up to 10° / sec

Technical data



Technical DataTable
Type	Single arm fork equatorial mount
Weight	22,4 kg
Capacity	25 kg single telescope setup, 32 kg double telescope setup.
Transmission system	All belts drive system based on four stages reducer. All the movements are on ball bearings. No maintenance and no backlash system. Pulleys made with special polymer fiberglass charged and high precision toothed belts.
Construction Material	Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
Slew Speed	up to 10° / sec
Polar Finder	Skywatcher model

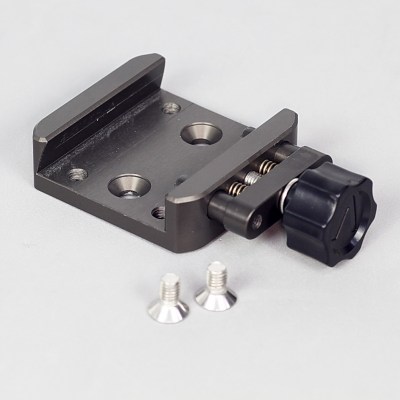

Counterweight bar	Dovetail 3" clamp

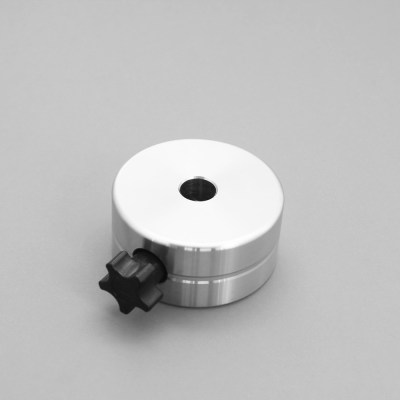

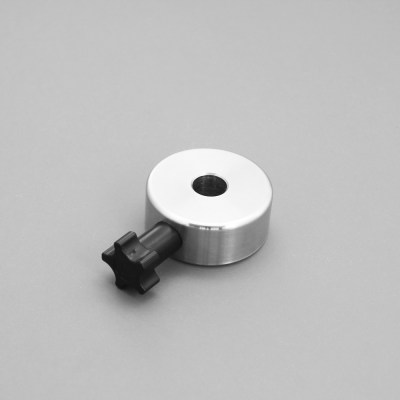

Counterweight	0,5 kg counterweight

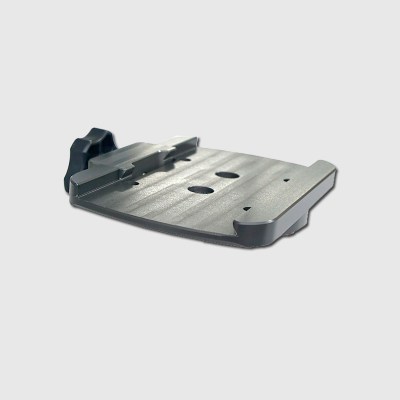

Scope plate	Losmandy, 3" (75mm), dovetail, single knob with 2 tightening points
Warranty	2 years from the purchase date, extended to 5 years for the transmission system



Technical Draw

M-due dimensions

M-due base flange

User Manual



M-due User Manual
