M-tre Equatorial Mount
M-tre - StarGo Plus (No Encoder)
PRODUCT CODE: AV-1MTR002
The M-tre is a single arm fork mount for the deepsky imaging, with an high payload capability up to 38 kg in single telescope configuration and up to 50 kg in double telescope configuration.
M-tre Equatorial Mount
Price (VAT excl.)9.400,00 €
Italian VAT (22%) incl.11.468,00 €
Discount applied on the cart:
Packing Contents
- Mount Head
Description
AVALON EXCLUSIVE BELT DRIVE SYSTEM
DUAL DEC

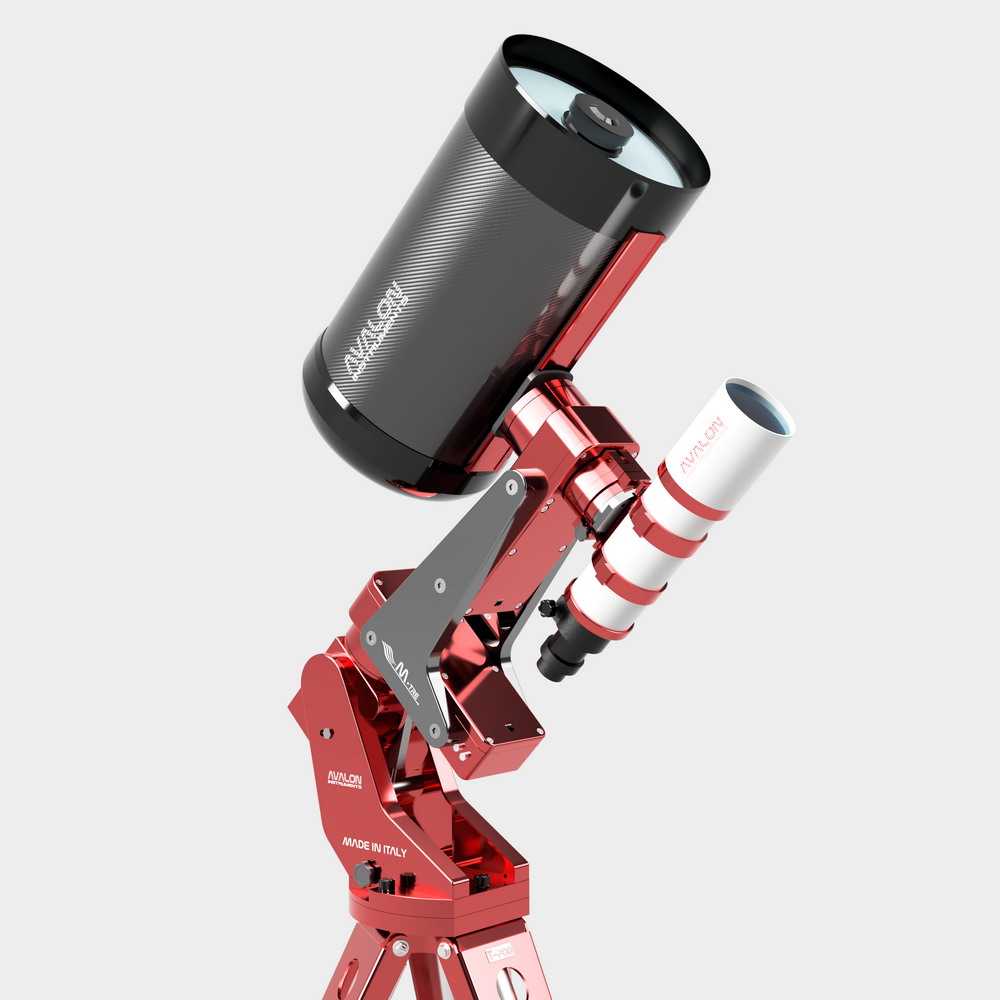

Thanks to the Dual Dec option, it is possible to use the second telescope as a counterweight itself, allowing a significative reduction of the counterweights use.
The possibilities to move the DEC arm towards the RA axis (with the same mechanism and concept of the M-zero, M-uno and M-due mounts), facilitate the balancing procedure allowing to use as less as counterweight possible or even without any counterweight at all.
Slew Speed: up to 10° / sec
NO MERIDIAN FLIP
Technical Specs
-
Technical DataTable Type Single arm fork equatorial mount Capacity 38 kg single telescope setup, 50 kg double telescope setup. Transmission system All belts drive system based on four stages reducer.
All the movements are on ball bearings. No maintenance and no backlash system.
Pulleys made with special polymer fiberglass charged and high precision toothed belts.Construction Material Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines Slew Speed up to 10° / sec Counterweight bar Dovetail 3" clamp Counterweight 1,4 kg counterweight Scope plate Losmandy, 3" (75mm), dovetail, single knob with 2 tightening point Warranty 2 years from the purchase date, extended to 5 years for the transmission system -
Technical draw
