Question Share a picture of your setup !

More
05 Aug 2020 06:37 - 05 Aug 2020 06:57 #356 by Guillaume
Replied by Guillaume on topic Share a picture of your setup !

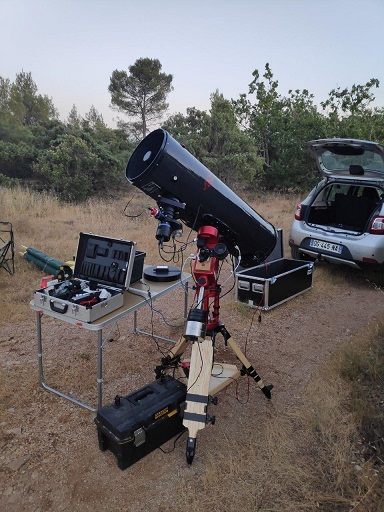

Avalon Linear on a Berlebach Planet
Home made pole master with a Canon 50mm f/1.8 + QHY5LII on a vixen clamp to remove it just after polar alignment.
Scope : Axis Instruments 250mm f/4
Imager : QHY163m
Guiding : OAG + ASI 290mm mini

File Attachment:

File Attachment:
Attachments:
Last edit: 05 Aug 2020 06:57 by Guillaume.

Please Log in or Create an account to join the conversation.

More
19 Oct 2020 07:02 #418 by cfm2004
Replied by cfm2004 on topic Share a picture of your setup !
Cristina Cellini e Fiorenzo Mazzotti (CFM2004)

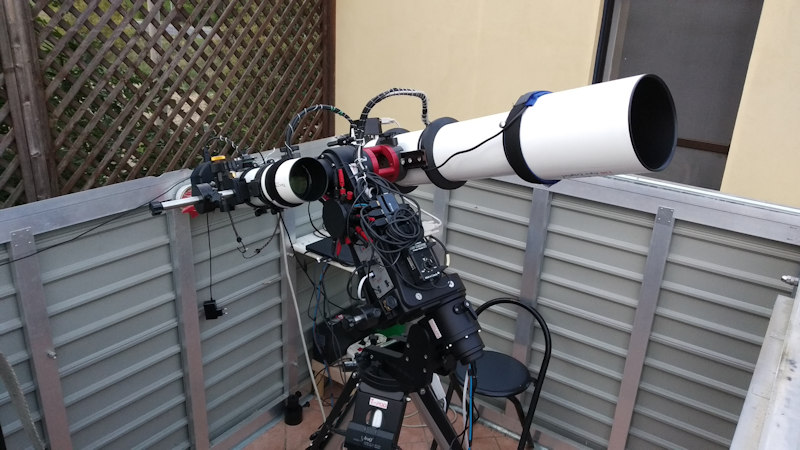

Avalon M1 - Tecnosky Apo 130/900 - AG70
San Romualdo - Ravenna (Italy)
Attachments:

Please Log in or Create an account to join the conversation.

More
16 Feb 2021 20:51 #490 by G_Gagnon
Replied by G_Gagnon on topic Share a picture of your setup !

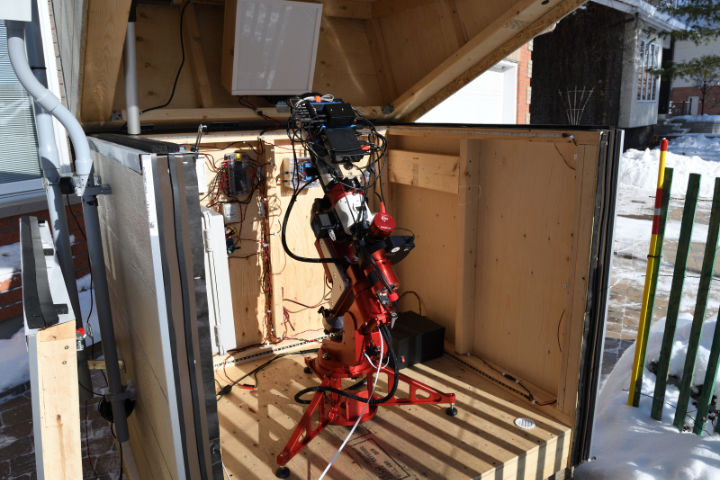

Here is my Avalon M-Zero OBS remote observatory setup.

It consists in the M-Zero OBS with the motorized PA option, onto which is mounted a William Optics GTF81 with ZWO ASI1600MM Pro camera, filter wheel and OAG, all running under KStars/Ekos/INDI in a distributed environment. The observatory has been built so it can be transported to other (darker) sites than mine. I still have some adjustments/improvements to make but it is working very nicely and its great to be able to do some astrophotography from inside the home, not freezing or be eaten/bitten by mosquitos.

Enjoy!

Attachments:
The following user(s) said Thank You: ken.self, jimv

Please Log in or Create an account to join the conversation.

  • hbentonreed@gmail.com
  • Offline
  • New Member
  • New Member
More
01 May 2021 21:52 #537 by hbentonreed@gmail.com
Replied by hbentonreed@gmail.com on topic Share a picture of your setup !

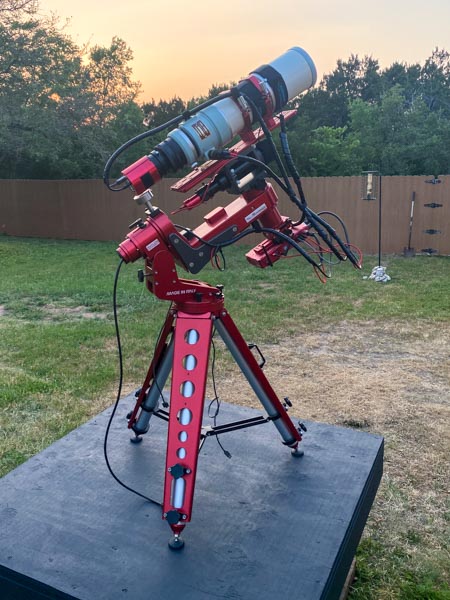

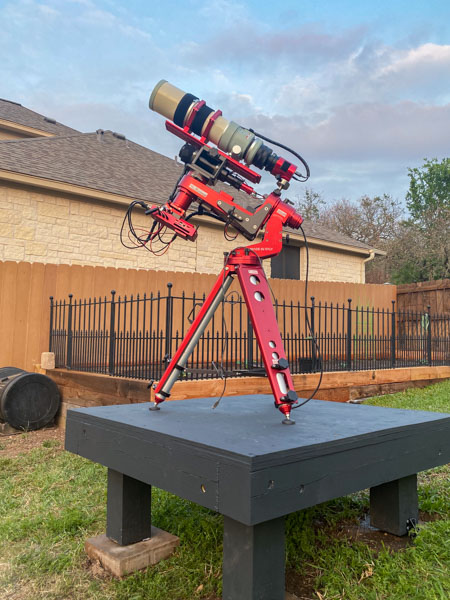

M-Uno with Takahashi FSQ106EDX4 / Eagle4 Pro / ASI6200MC PRO
Attachments:
The following user(s) said Thank You: jimv

Please Log in or Create an account to join the conversation.

More
24 Jul 2021 16:52 - 24 Jul 2021 16:59 #613 by Peter_S
Replied by Peter_S on topic Share a picture of your setup !
here my setup:
M Uno + Esprit Apo 100 / C 8

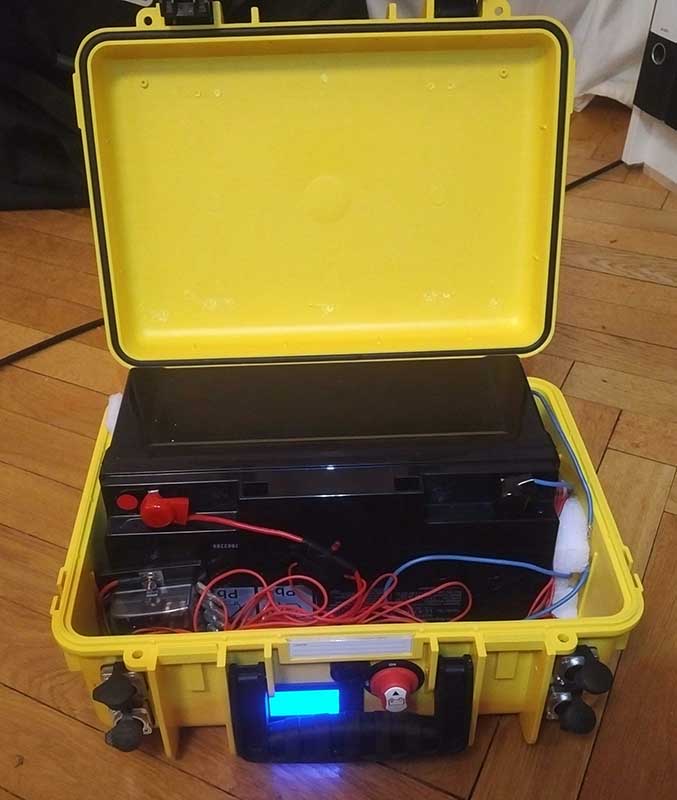

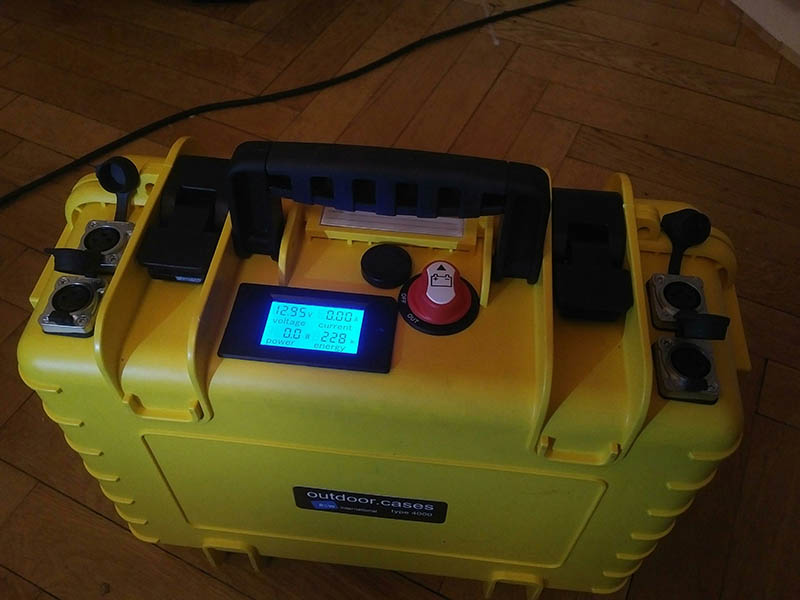

accu case for mobile setup
Peter

M Uno, M Zero, Esprit APO ED 100, Lacerta MoFoc,
C8 EHD, Lacerta f4 Foto Newton + MoonLite LiteCrawler/Rot., MGEN III, W10 64 Mini-PC,
Attachments:
Last edit: 24 Jul 2021 16:59 by Peter_S. Reason: cancel double images

Please Log in or Create an account to join the conversation.

More
25 Dec 2021 11:19 #836 by astrorobby
Replied by astrorobby on topic Share a picture of your setup !

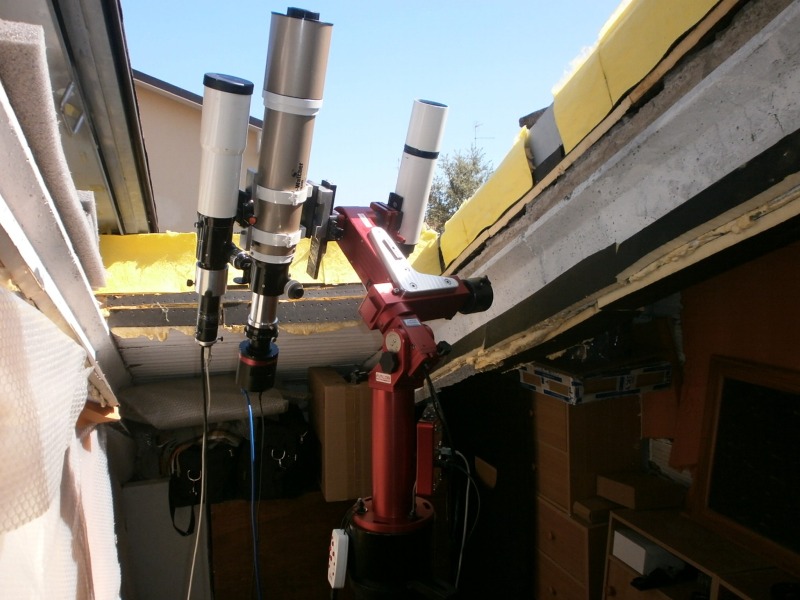

Avalon m0 , Tele sw 80 ed , tele guida wo 66 apo, tele in parallelo 40 acro. ccd qhy 294c, Colonna autocostruita. Ottima
Attachments:
